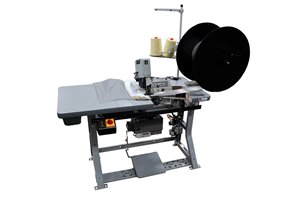

Ultra HC-401
This binding machine is capable of constructing “half-cap buckets” for single-sided beds with the thickest of border materials. As new materials and styles enter the mattress market, the need for thicker and denser materials is becoming more common. Don’t limit your product design by lesser machine limitations. The Ultra HC-401 binding machine is designed to join thick border materials and non-woven panels for strong single-sided buckets.
Specifications
| Max. sewing speed | 3200 rpm |
| Recommended sewing speed | 3000 rpm |
| Stitches per inch (spi) | 4-5 (6.4-5 mm stitch) |
| Presser foot height | 1/2” (12 mm) |
| Needle type | 135 x 17 |
| Needle size | 22-24 |
| Voltage/phase | 220/1 |
| Current (amps) | 15 |
| Air pressure (psi) | 80 (5.5 bar) |
| Air consumption (CFM) | 0.1 (3 L/min) |
| Production (units/minute, hour, or shift) | 1/min |
| Max. thickness | 2-1/2” (64 mm) |
| Min. thickness | Flat |
| Footprint (LxW) | 48” x 20” (1219 x 508 mm) |
| Weight | 325 lbs. (147 kg) |
| Shipping dimensions (LxWxH) | 59” x 34” x 51” (1499 x 864 x 1295 mm) |
