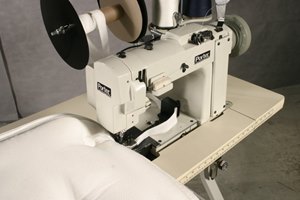

300-PT Panel Binder Machine
The 300-PT Panel Binder Machine offers a 300U Singer-style sewing head and a single-needle chainstitch with walking-foot technology. It features a tape edge head configuration and higher lift for thicker pillowtops. 300-PT includes an electronic needle positioner for operating convenience and this ergonomically designed sewing station has a sewing head that slants up to 5% toward the operator.
Features and Benefits
- 300U Singer style sewing head
- Single needle chain stitch with walking foot
- Tape edge head configuration
- Higher lift for thicker pillowtops
- Electronic needle positioner
- Ergonomically designed sewing station with sewing head that slants up to 5% towards operator
- Material: ½"e; – 6"e; (12.7 mm – 152 mm)
- Speed: 2500 rpm @ 5 spi
- Footprint: 48"e; × 20"e; (1.2 m × .5 m)
- Presser foot height: ½"e; (12.7 mm)
- Yield: 130+/- buckets/8-hour shift
Specifications
| Stitch Type | 3 needle chainstitch |
| Std Folder | 5"e; (12.7 cm) wide V gusset but up to 8 1/2"e; (216 mm) |
| Max Speed-rpm | 2000 |
| Recommended Speed-rpm | 1800 |
| Stitches Per Inch | 5 |
| Needle Type | 62 x 59 |
| Needle Size | 23 |
| Needle Height | 11 mm |
| Presser Foot Height | 8 mm |
| Aux Feed Device | Integral puller |
| Motor Type | Electronic needle positioner |
| Max. Thickness Capacity | 6 mm/quilted pkg |
| Voltage | 220 VAC |
| Current | 5 amps |
| Air Pressure | 80 psi |
| Air Consumption (cfm) | .5 CFM |
| Weight (gross) | 1099 lbs. |
| Shipping Dimensions | 99"e; x 51"e; x 79"e; |
| Footprint | 108"e; × 34"e; (2.7 m × .86 m) |
